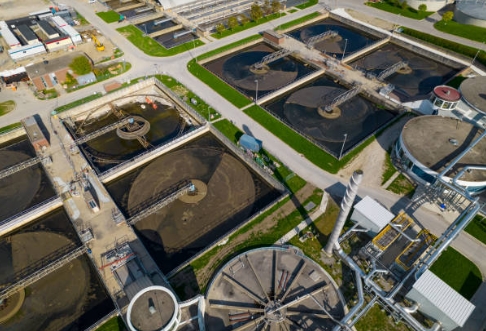

Sewage treatment plants (STPs) play a crucial role in managing wastewater and protecting the environment by treating sewage before its release or reuse. A key component of any STP is the treatment tank, where various physical, chemical, and biological processes occur. The choice of material for constructing these tanks significantly affects the plant's durability, efficiency, maintenance, and cost. This article explores the materials commonly used in sewage treatment plant tank construction, design considerations, and their advantages and limitations.
Treatment tanks are the core units in sewage treatment plants where raw sewage undergoes physical settling, biological degradation, and chemical treatment. These tanks include sedimentation tanks, aeration tanks, clarifiers, sludge digesters, and more. The tanks must withstand harsh chemical environments, microbial activity, abrasion from grit and solids, and structural stresses.
The importance of selecting the right material for these tanks cannot be overstated. The tanks are often underground or partially submerged, exposed to fluctuating loads, chemical aggressiveness from wastewater, and environmental conditions such as temperature changes and groundwater pressure. A well-designed tank with appropriate materials ensures longevity, operational efficiency, and environmental safety.
When designing tanks for sewage treatment plants, engineers consider several factors:
- Type of Treatment Process: Different tanks serve primary, secondary, or tertiary treatment functions, influencing tank shape, size, and material requirements. For example, aeration tanks require oxygen distribution systems, while sedimentation tanks focus on solids settling.
- Capacity and Flow Rate: Tanks must accommodate average and peak sewage flows with sufficient retention time for effective treatment. This influences tank dimensions and structural strength.
- Tank Shape and Configuration: Rectangular tanks are common for sedimentation and aeration, while circular tanks are often used for clarifiers due to better flow dynamics and ease of sludge removal.
- Aeration and Oxygenation Needs: Biological treatment tanks require materials compatible with aeration equipment and oxygen distribution systems, as well as resistance to oxygen-induced corrosion.
- Durability and Corrosion Resistance: Tanks must resist chemical corrosion, microbial attack, abrasion, and leakage risks. The presence of hydrogen sulfide gas, acids, and other corrosive agents in sewage can degrade many materials if not properly protected.
- Maintenance and Cost: Materials should balance initial cost, ease of maintenance, and longevity. Some materials may have a higher upfront cost but lower lifecycle costs due to reduced maintenance.
- Environmental Impact: The material choice can influence the environmental footprint of the plant, including carbon emissions during construction and potential for contamination if leaks occur.
Reinforced concrete is the most widely used material for sewage treatment tanks due to its strength, durability, and cost-effectiveness. It is composed of concrete reinforced with steel bars or mesh to enhance tensile strength.
Advantages:
- High structural strength suitable for large tanks.
- Good resistance to pressure and mechanical stresses.
- Relatively low cost and widely available.
- Can be cast in situ to fit any shape or size.
- Excellent load-bearing capacity, allowing for underground installations.
Challenges:
- Susceptible to chemical corrosion from wastewater, especially hydrogen sulfide and acids. These chemicals can cause concrete degradation and steel reinforcement corrosion.
- Requires waterproofing coatings or liners to prevent leakage and degradation.
- Microbial Induced Corrosion (MIC) can occur in anaerobic conditions, damaging concrete and steel.
- Cracking due to shrinkage or thermal stresses can compromise tank integrity if not properly managed.
Construction Process:
The construction involves excavation, pouring concrete foundations, installing formwork, reinforcing with steel, casting concrete walls, plastering, and applying waterproof coatings. Piping, valves, and aeration equipment are then installed.
Reinforced concrete tanks often incorporate additives and admixtures in the concrete mix to improve chemical resistance and reduce permeability. For example, silica fume and fly ash can enhance durability. Additionally, the use of epoxy-coated or galvanized reinforcement bars helps mitigate corrosion risks.
Stainless steel is used in specific tanks or components where high chemical resistance and hygiene are critical, such as in smaller tanks or parts exposed to aggressive chemicals.
Advantages:
- Excellent corrosion resistance to chemicals and microbial attack.
- Smooth surface reduces biofilm formation and facilitates cleaning.
- Long service life with minimal maintenance.
- Suitable for tanks requiring frequent cleaning or where contamination control is essential.
Challenges:
- Higher initial cost compared to concrete.
- Less commonly used for large tanks due to fabrication and cost constraints.
- Requires skilled welding and fabrication techniques to ensure leak-proof joints.
Stainless steel tanks are often used in industrial wastewater treatment plants or in parts of municipal plants where aggressive chemicals are handled.
FRP tanks are gaining popularity for smaller sewage treatment units due to their corrosion resistance and lightweight properties.
Advantages:
- Highly resistant to chemical corrosion, including acids and alkalis.
- Lightweight and easy to install, reducing foundation requirements.
- Low maintenance requirements.
- Can be prefabricated and transported to site for quick installation.
Challenges:
- Not suitable for very large tanks due to structural limitations and cost.
- Vulnerable to UV degradation if exposed to sunlight without protective coatings.
- Potential for damage from impact or abrasion if not properly protected.
FRP tanks are commonly used in decentralized sewage treatment systems, small communities, or industrial applications with smaller wastewater volumes.
Concrete tanks require protective measures to enhance durability:
- Waterproof Coatings: Applied to prevent leakage and protect concrete from corrosive elements. These include epoxy coatings, polyurethane membranes, and cementitious waterproofing layers.
- Joint Sealants: Specialized systems like Sikadur-Combiflex® SG provide waterproofing for joints with high chemical and water pressure resistance. These systems also accommodate structural movements and prevent cracks.
- Liners: In some cases, flexible liners made of PVC or HDPE are installed inside tanks to provide a chemical-resistant barrier.
Proper waterproofing extends the life of concrete tanks by preventing infiltration of aggressive sewage components and groundwater, thereby reducing maintenance costs and environmental risks.
The typical steps in constructing sewage treatment tanks include:
1. Site Preparation and Excavation: Digging foundation pits according to design, ensuring proper soil compaction and drainage.
2. Foundation Pouring: Laying concrete foundations for structural stability, often with embedded anchors for equipment.
3. Formwork Installation: Setting up cement or mortar formworks for shaping the tank walls and base.
4. Reinforcement: Installing steel bars or mesh for concrete reinforcement, designed to withstand tensile and shear stresses.
5. Concrete Pouring: Casting concrete for walls and base, often in multiple layers to ensure uniform strength.
6. Brickwork and Plastering: In some designs, brick construction is used followed by plastering to smooth surfaces and prepare for waterproofing.
7. Waterproofing: Applying coatings or membranes to protect concrete from chemical attack and leakage.
8. Installation of Piping and Equipment: Fitting valves, aeration systems, mixers, and electromechanical components essential for treatment processes.
9. Auxiliary Works: Constructing ventilation systems, sludge treatment zones, filtration chambers, and access points for maintenance.
10. Testing and Commissioning: Conducting leak tests, structural inspections, and operational trials before full-scale use.
Recent innovations in sewage treatment tank construction include:
- Composite Materials: Combining concrete with polymer liners or fiberglass layers for enhanced corrosion resistance and structural performance.
- Advanced Filtration Media: Incorporation of quartz sand and activated carbon fillers inside treatment units to improve filtration efficiency and remove odors and contaminants.
- Modular Prefabricated Tanks: Using factory-made tank sections for faster installation, improved quality control, and reduced onsite labor. These modular tanks can be made of FRP, stainless steel, or concrete panels.
- Self-Healing Concrete: Concrete formulations that can repair micro-cracks autonomously using embedded microcapsules or bacteria that precipitate calcium carbonate, extending tank life and reducing maintenance.
- Smart Monitoring Systems: Integration of sensors within tanks to monitor structural health, leakage, and chemical parameters in real-time, enabling predictive maintenance and early fault detection.
These emerging technologies contribute to more sustainable, efficient, and cost-effective sewage treatment infrastructure.
- Regular Inspection: Monitoring for cracks, leaks, corrosion, and structural deformation is essential to prevent failures. Visual inspections, ultrasonic testing, and infrared thermography are commonly used.
- Cleaning: Periodic removal of sludge, grit, and biofilms maintains tank efficiency and prevents clogging or corrosion hotspots.
- Repair of Joints: Using advanced sealing systems like Sikadur-Combiflex® SG to fix leaks without full tank reconstruction saves time and cost.
- Corrosion Protection: Reapplication of waterproof coatings, cathodic protection for steel reinforcements, and use of corrosion inhibitors help extend tank life.
- Structural Reinforcement: In older tanks, carbon fiber reinforced polymer (CFRP) wraps can be applied externally to strengthen walls and prevent cracking.
Proper maintenance ensures operational reliability, protects public health, and prolongs the lifespan of the treatment plant.
- Leak Prevention: Ensuring tanks are leak-proof protects groundwater and surrounding soil from contamination by untreated sewage.
- Odor Control: Materials and coatings that reduce biofilm formation help minimize odor emissions.
- Worker Safety: Construction and maintenance materials should minimize exposure to hazardous chemicals and provide safe working conditions.
- Sustainability: Using locally sourced materials and recyclable components reduces the environmental footprint of sewage treatment plants.
- Compliance: Materials must comply with local and international standards for wastewater infrastructure, such as ASTM, AWWA, and ISO certifications.
The construction material of sewage treatment plant tanks is a critical factor influencing the plant's operational efficiency, durability, and maintenance costs. Reinforced concrete remains the dominant choice due to its strength and versatility, but it requires protective measures against corrosion and leakage. Stainless steel and fiberglass reinforced plastic are alternatives for specific applications requiring high corrosion resistance or lightweight solutions. Advances in waterproofing technologies, composite materials, and self-healing concretes continue to improve tank longevity and performance. Proper design, material selection, and maintenance ensure that sewage treatment tanks effectively fulfill their environmental protection role over many years, safeguarding public health and natural ecosystems.
Answer: Reinforced concrete is the most commonly used material due to its strength, durability, and cost-effectiveness.
Answer: Concrete is susceptible to chemical corrosion and leakage; waterproofing coatings and membranes protect the tank structure and prevent environmental contamination.
Answer: Stainless steel is generally used for smaller tanks or components due to its high cost and fabrication challenges for large volumes.
Answer: FRP tanks offer excellent corrosion resistance, are lightweight, and require low maintenance, making them suitable for smaller treatment units.
Answer: Microbial induced corrosion occurs in anaerobic conditions within tanks, leading to deterioration of concrete and metal parts, reducing tank lifespan.
