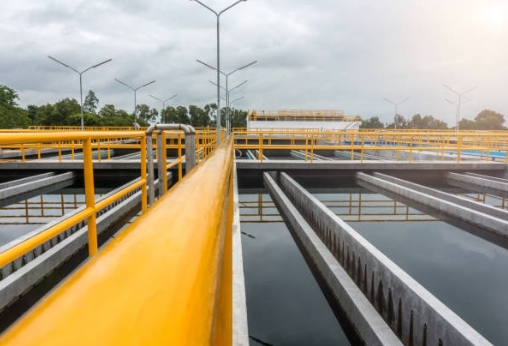

Sewage treatment plants (STPs) are vital infrastructures designed to remove contaminants from wastewater, primarily from household sewage, to protect public health and the environment. Understanding the flow diagram of a typical sewage treatment plant helps in grasping the complex processes involved in treating sewage effectively. This article provides a detailed explanation of the typical components and stages included in a sewage treatment plant flow diagram, supported by illustrative diagrams and images for clarity.
Sewage treatment involves physical, chemical, and biological processes to remove pollutants from wastewater. The treatment is generally divided into three main stages:
- Preliminary treatment
- Primary treatment
- Secondary treatment
- Tertiary treatment (optional, depending on discharge requirements)
Each stage progressively removes solids, organic matter, and harmful substances to produce treated water safe for discharge or reuse.
Sewage treatment is essential because untreated wastewater contains pathogens, organic materials, nutrients, and hazardous chemicals that can cause water pollution, spread diseases, and harm aquatic ecosystems. Modern sewage treatment plants are designed to reduce these impacts by efficiently processing sewage through multiple treatment steps.
A typical sewage treatment plant flow diagram includes the following key components and processes:
- Function: Collects raw sewage from residential, commercial, or industrial sources and pumps it to the treatment plant.
- Details: Sewage flows through underground pipes to a pumping station if gravity flow is insufficient. Pumps lift the sewage to the treatment plant headworks.
- Importance: Pumping stations ensure continuous flow even in low-lying areas or where terrain prevents gravity flow.
- Purpose: Removes large debris such as sticks, rags, plastics, and other solids that could damage equipment or hinder treatment.
- Types: Bar screens or coarse screens are typical.
- Outcome: Large solids are trapped and removed for disposal.
- Maintenance: Screens require regular cleaning to prevent clogging.
- Function: Removes sand, gravel, and other heavy inorganic particles.
- Process: Grit chambers slow down flow velocity to allow grit to settle.
- Importance: Prevents abrasion and clogging in pumps and pipes, protecting mechanical equipment.
- Types: Aerated grit chambers or vortex grit chambers are common.
- Role: Settles suspended solids by gravity.
- Process: Wastewater is held in large tanks where solids settle to form sludge at the bottom.
- Sludge Management: Sludge is scraped and pumped to sludge treatment units.
- Effectiveness: Removes approximately 50-60% of suspended solids and 30-40% of biochemical oxygen demand (BOD).
Goal: Remove dissolved and suspended organic matter biologically.
Methods:
- Activated Sludge Process: Air is pumped into aeration tanks to promote bacterial growth that digests organic matter.
- Trickling Filters: Wastewater flows over biofilm-covered media where bacteria break down pollutants.
- Moving Bed Biofilm Reactor (MBBR): Uses plastic carriers for biofilm growth in aerated tanks.
- Outcome: Significant reduction of biochemical oxygen demand (BOD) and suspended solids.
- Sludge Recycling: A portion of settled biomass is recycled to maintain microbial populations.
- Purpose: Settles biological solids from secondary treatment.
- Process: Settled biomass is either recycled back to aeration tanks or removed as waste activated sludge.
- Importance: Ensures clear effluent with low suspended solids.
When Used: To meet higher water quality standards for sensitive environments or water reuse.
Processes:
- Filtration (sand filters, disc filters)
- Disinfection (chlorination, ultraviolet light)
- Nutrient removal (phosphorus, nitrogen)
- Result: Polished effluent safe for discharge or reuse.
- Environmental Impact: Reduces eutrophication risks in receiving waters.
Stages:
- Thickening: Concentrates sludge by removing water.
- Digestion: Stabilizes sludge biologically or chemically (e.g., anaerobic digestion).
- Dewatering: Further reduces water content using centrifuges or filter presses.
- Final Disposal: Land application, incineration, or landfill.
- Energy Recovery: Anaerobic digestion produces biogas that can be used for energy.
Sewage treatment plants often include odor control units to prevent the release of unpleasant smells. Techniques include biofilters, activated carbon filters, and chemical scrubbers. These systems are typically placed near screening and sludge handling areas where odors are most intense.
In some plants, chemicals such as coagulants and flocculants are added to enhance sedimentation or nutrient removal. For example, alum or ferric chloride may be used to remove phosphorus during tertiary treatment.
Modern sewage treatment plants are equipped with sensors and automated control systems to monitor parameters like flow rate, dissolved oxygen, pH, and turbidity. These systems optimize treatment efficiency and ensure compliance with environmental regulations.
Sewage treatment plants play a crucial role in protecting water bodies from pollution. Untreated sewage can introduce pathogens, nutrients, and toxic substances into rivers, lakes, and oceans, leading to:
- Spread of waterborne diseases such as cholera and dysentery.
- Eutrophication caused by excess nitrogen and phosphorus, resulting in harmful algal blooms and oxygen depletion.
- Contamination of drinking water sources.
- Negative impacts on aquatic life and biodiversity.
By effectively treating sewage, STPs help maintain ecosystem balance, safeguard public health, and enable sustainable water resource management.
The field of sewage treatment is evolving with innovations aimed at improving efficiency, reducing energy consumption, and enabling resource recovery:
- Energy-neutral or energy-positive plants: Utilizing biogas from sludge digestion to power the plant.
- Nutrient recovery: Technologies to recover phosphorus and nitrogen for use as fertilizers.
- Advanced membrane filtration: For ultra-pure water reuse.
- Automation and AI: Enhanced monitoring and predictive maintenance.
- Decentralized treatment systems: Small-scale plants serving communities to reduce infrastructure costs.
These advancements will make sewage treatment more sustainable and adaptable to growing urban populations.
A typical sewage treatment plant flow diagram includes a sequence of physical, biological, and chemical processes designed to treat wastewater efficiently. Starting from raw sewage collection and pumping, the flow progresses through screening, grit removal, primary sedimentation, biological treatment, secondary sedimentation, and finally tertiary treatment and sludge management. Each stage plays a crucial role in removing contaminants to produce safe, treated effluent. Understanding these components and their interconnections is essential for designing, operating, and maintaining effective sewage treatment systems.
Sewage treatment not only protects public health but also preserves the environment by preventing pollution and enabling water reuse. As technology advances, sewage treatment plants will become more efficient, sustainable, and capable of recovering valuable resources from wastewater.
Screening removes large solids and debris from raw sewage to prevent damage to downstream equipment and ensure smooth operation of the treatment plant.
The activated sludge process aerates wastewater to support bacterial growth that biologically digests organic pollutants, reducing biochemical oxygen demand.
Grit removal eliminates heavy inorganic particles like sand and gravel that can cause abrasion and clogging in pumps and pipes.
Sludge is thickened, stabilized (often via anaerobic digestion), dewatered, and then disposed of or reused, depending on local regulations and technology.
Tertiary treatment is an advanced stage involving filtration, disinfection, and nutrient removal to meet stringent water quality standards before discharge or reuse.
