Sewage treatment is a critical process for protecting public health and the environment. It involves removing contaminants from wastewater, making it safe to discharge back into the environment or reuse for other purposes. The effectiveness of sewage treatment depends heavily on the materials used in the treatment processes. This article provides a comprehensive overview of different types of sewage treatment materials, their applications, and their impact on the overall treatment process.

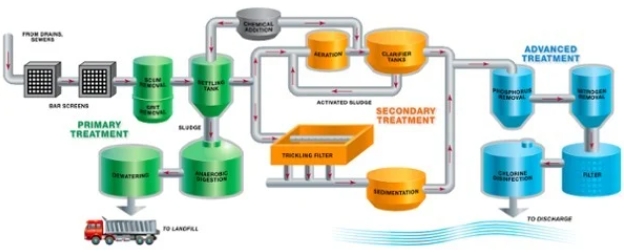

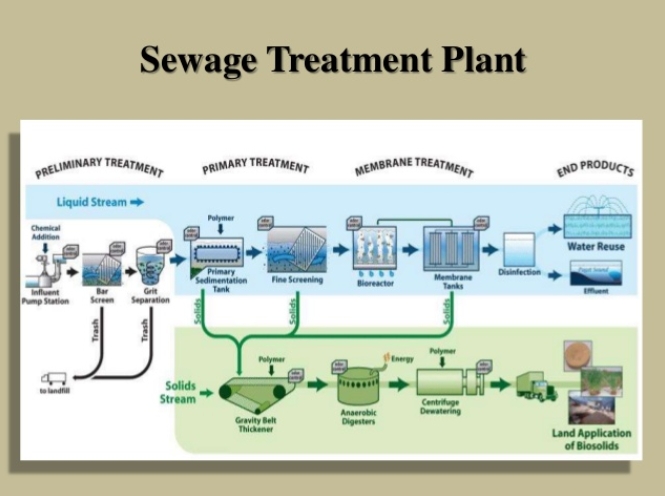

Primary treatment is the first stage of sewage treatment, which focuses on removing large solids and debris from the wastewater. This is primarily a physical process.
Screens are used to remove large objects such as rags, plastics, and sticks from the wastewater. These materials can clog or damage downstream equipment if not removed.
Types of Screens:
- Bar Screens: These consist of parallel bars spaced a few inches apart[2]. They are typically made of stainless steel or coated steel for corrosion resistance.
- Mesh Screens: These screens use a woven mesh to remove smaller particles[2]. They are often used after bar screens to provide finer filtration.
- Automated Screens: These screens use mechanical systems to continuously remove and dispose of the collected debris[2].
Grit consists of sand, gravel, and other heavy inorganic materials that can damage pumps and other equipment. Grit removal is typically achieved using grit chambers or vortex separators[2].
Grit Chamber Materials:
- Concrete: Grit chambers are often constructed of concrete due to its durability and resistance to erosion[2].
- Steel: Steel components are used for the chamber's internal structures and support systems[2].
- Coatings: Epoxy coatings are applied to the concrete and steel surfaces to protect against corrosion from the abrasive grit[2].
Sedimentation tanks, also known as primary clarifiers, are used to remove settleable solids from the wastewater. These tanks provide a quiescent environment where gravity can separate the solids from the liquid[2].
Tank Materials:
- Concrete: Sedimentation tanks are commonly made of concrete due to its strength and ability to be molded into large structures[2].
- Steel: Steel is used for the tank's structural support and for components such as weirs and baffles[2].
- Coatings: Protective coatings are applied to the concrete and steel to prevent corrosion from the wastewater[2].
Secondary treatment involves the removal of dissolved and suspended organic matter. This is typically achieved through biological processes.
The activated sludge process uses microorganisms to consume organic pollutants in the wastewater[1]. The microorganisms form a biological floc, or sludge, that can be settled out in a secondary clarifier.
Aeration Tank Materials:
- Concrete: Aeration tanks are often constructed of concrete to provide a durable and stable environment for the microorganisms[1].
- Diffusers: Aeration is achieved by diffusing air into the wastewater. Diffusers are typically made of ceramic, rubber, or plastic[1].
- Mixers: Mixers are used to keep the sludge in suspension and ensure uniform distribution of oxygen. They are made of stainless steel or coated steel[1].
Trickling filters consist of a bed of media over which wastewater is sprayed. Microorganisms grow on the media and consume the organic matter in the wastewater as it trickles down[1].
Filter Media Materials:
- Rock: Historically, trickling filters used crushed rock as the media[1].
- Plastic: Modern trickling filters often use plastic media, which provides a higher surface area for microbial growth[1].
- Slag: Some trickling filters use slag, a byproduct of metal smelting, as the media[1].
MBRs combine biological treatment with membrane filtration to separate solids from the treated water[1]. This results in a high-quality effluent.
Membrane Materials:
- Polymeric Membranes: These membranes are typically made of polymers such as polyvinylidene fluoride (PVDF) or polyethylene (PE)[1].
- Ceramic Membranes: Ceramic membranes are more durable than polymeric membranes but are also more expensive[1].
Tertiary treatment is the final stage of sewage treatment, which removes any remaining pollutants and pathogens from the wastewater[3].
Tertiary filtration removes any remaining suspended solids from the wastewater.
Media Filters:
- Sand: Sand filters use a bed of sand to remove solids[7].
- Anthracite: Anthracite coal can be used in combination with sand to improve filtration[7].
- Gravel: Gravel is used as a support layer for the sand and anthracite[7].
Disinfection is used to kill any remaining pathogens in the wastewater.
Chlorine:
- Chlorine Gas: Chlorine gas is a common disinfectant[3]. It is typically stored in steel cylinders.
- Sodium Hypochlorite: Sodium hypochlorite (bleach) is another common disinfectant[3]. It is stored in plastic tanks.
- Ultraviolet (UV) Radiation:
- UV Lamps: UV disinfection systems use UV lamps to kill pathogens[3]. The lamps are typically made of quartz glass.
Constructed wetlands use soil, microbes, and wetland plants to clean wastewater naturally[1].
Wetland Materials:
- Soil: The soil provides a medium for the plants to grow and for the microbes to thrive[1].
- Plants: Wetland plants help to remove pollutants from the wastewater[1].
- Gravel: Gravel is used as a support layer for the soil and plants[1].
Sludge is the solid material that is removed from the wastewater during treatment. Sludge treatment is necessary to reduce the volume of the sludge and to stabilize it so that it can be safely disposed of or reused[9].
Thickening is used to reduce the volume of the sludge.
Thickening Equipment:
- Gravity Thickeners: These use gravity to separate the solids from the liquid[9]. They are typically made of steel or concrete.
- Dissolved Air Flotation (DAF): DAF systems use air bubbles to float the solids to the surface[9]. They require materials such as:
- steel tanks
- air compressors
- flocculation chemicals
Digestion is used to stabilize the sludge and reduce its odor.
Digester Materials:
- Concrete: Anaerobic digesters are often constructed of concrete to provide a gas-tight environment for the microorganisms[9].
- Steel: Steel is used for the digester's structural support and for components such as mixers and heating systems[9].
- Insulation: Insulation is used to maintain a constant temperature in the digester[9].
Dewatering is used to further reduce the volume of the sludge.
Dewatering Equipment:
- Belt Filter Presses: These use belts to squeeze the water out of the sludge[9]. The belts are made of synthetic materials.
- Centrifuges: Centrifuges use centrifugal force to separate the solids from the liquid[9]. They are made of stainless steel.
The selection of appropriate sewage treatment materials is critical for ensuring the effective and efficient removal of pollutants from wastewater. From the initial screening of large debris to the final disinfection of pathogens, each stage of the treatment process relies on specific materials designed to perform a particular function. As technology advances, new and innovative materials are being developed to improve the performance of sewage treatment plants and to reduce their environmental impact. Understanding the properties and applications of these materials is essential for engineers, operators, and policymakers involved in wastewater management.
The most common materials used in primary sewage treatment include stainless steel or coated steel for bar screens, concrete for grit chambers and sedimentation tanks, and epoxy coatings to protect against corrosion[2].
In activated sludge systems, concrete is used for aeration tanks to provide a durable environment. Diffusers made of ceramic, rubber, or plastic introduce air for microbial activity, while stainless steel or coated steel mixers ensure uniform oxygen distribution, enhancing the removal of organic pollutants[1].
Polymeric membranes, typically made of polyvinylidene fluoride (PVDF) or polyethylene (PE), and ceramic membranes are crucial in MBRs for separating solids and generating high-quality effluent[1]. Polymeric membranes are cost-effective, while ceramic membranes offer greater durability.
In tertiary treatment, sand and anthracite are used in media filters to remove any remaining suspended solids[7]. Chlorine gas, stored in steel cylinders, or sodium hypochlorite, stored in plastic tanks, are employed for disinfection. UV lamps made of quartz glass are used in ultraviolet (UV) radiation systems to kill pathogens[3].
Constructed wetlands use soil as a medium for plant growth and microbial activity, wetland plants to remove pollutants, and gravel as a support layer for the soil and plants, providing an environmentally friendly solution for wastewater treatment[1].
