Sewage treatment plants are critical infrastructure for protecting public health and the environment. These plants transform wastewater—a complex mixture of domestic, industrial, and agricultural runoff—into effluent that can be safely returned to the environment. This guide explores the materials, processes, and technologies that underpin sewage treatment, providing insights into how contaminants are removed and water is made safe for reuse or discharge. From traditional methods to advanced innovations, understanding these systems is vital for environmental sustainability.

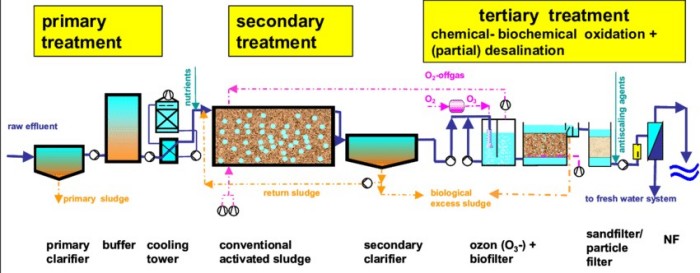

The sewage treatment process is multi-staged, each targeting specific types of contaminants to progressively improve water quality.
The initial stage, preliminary treatment, focuses on removing large debris and coarse solids from the wastewater stream. This step is essential to protect downstream equipment from damage and prevent blockages.
- Screening: Wastewater first passes through screens with varying mesh sizes. These screens capture large objects like rags, sticks, plastics, and other floatable materials. Mechanical bar screens are commonly used, where automated rakes periodically remove accumulated debris.
- Grit Removal: After screening, the wastewater flows into grit chambers. These chambers are designed to slow down the flow rate, allowing heavier inorganic materials like sand, gravel, and cinders to settle out. Grit removal is crucial to prevent abrasion and wear on pumps and other mechanical equipment in subsequent treatment stages.
- Flow Equalization: Some plants include flow equalization basins to dampen fluctuations in wastewater flow rates. This ensures a more consistent flow to downstream processes, improving treatment efficiency and reducing the risk of overloading the system.
Primary treatment involves the physical separation of settleable solids from the wastewater. This is typically achieved through sedimentation.
- Sedimentation Tanks: Wastewater is held in large tanks, allowing heavier solid particles to settle to the bottom, forming a layer of sludge. These tanks are often circular or rectangular, equipped with mechanical scrapers to continuously collect the settled sludge.
- Sludge Collection: The settled sludge is collected and removed for further treatment. This sludge contains organic matter and pathogens that must be stabilized before disposal or reuse.
- Skimming: In addition to settling, some tanks also have surface skimmers to remove floating materials like oil, grease, and scum. These materials can interfere with subsequent treatment processes and are removed to improve effluent quality.
Secondary treatment utilizes biological processes to remove dissolved and suspended organic matter from the wastewater. Microorganisms, primarily bacteria, consume the organic pollutants, converting them into biomass, water, and carbon dioxide.
- Activated Sludge Process: The activated sludge process is one of the most common secondary treatment methods. Wastewater is mixed with a concentrated suspension of microorganisms (activated sludge) in aeration tanks. Air is pumped into the tanks to provide oxygen for the microorganisms and to keep the sludge in suspension. The microorganisms consume the organic matter in the wastewater, forming flocs that can be settled out in subsequent clarification tanks.
- Trickling Filters: Trickling filters consist of a bed of rocks, gravel, or plastic media over which wastewater is sprayed. A biofilm of microorganisms grows on the surface of the media, consuming organic matter as the wastewater trickles down. Air circulates through the filter to provide oxygen.
- Rotating Biological Contactors (RBCs): RBCs consist of a series of rotating discs partially submerged in wastewater. A biofilm of microorganisms grows on the surface of the discs. As the discs rotate, they alternately expose the biofilm to the wastewater and the air, allowing the microorganisms to consume organic matter.
- Oxidation Ditches: Oxidation ditches are shallow, looped channels in which wastewater is circulated. A rotor or surface aerator provides oxygen and keeps the wastewater mixed. Microorganisms in the ditch consume organic matter.
Tertiary treatment, also known as advanced treatment, removes any remaining pollutants from the wastewater after secondary treatment. This stage is often required to meet stringent discharge standards or to produce water for reuse.
- Filtration: Filtration removes suspended solids that were not removed in previous treatment stages. Sand filters, multimedia filters, and membrane filters are commonly used.
- Disinfection: Disinfection kills or inactivates pathogenic microorganisms in the wastewater. Chlorine disinfection, UV disinfection, and ozonation are common methods.
- Nutrient Removal: Nutrient removal processes remove nitrogen and phosphorus from the wastewater. These nutrients can contribute to eutrophication in receiving waters, leading to algal blooms and oxygen depletion. Nitrogen removal is typically achieved through nitrification and denitrification. Phosphorus removal can be achieved through chemical precipitation or biological uptake.
- Activated Carbon Adsorption: Activated carbon adsorption removes dissolved organic compounds and other contaminants that are not effectively removed by other treatment processes.
Sewage treatment plants vary significantly in their design and complexity, depending on factors such as the size of the community served, the characteristics of the wastewater, and the required effluent quality.
Activated sludge plants, as mentioned earlier, utilize a biological process where oxygen and microorganisms clean and sanitize sewage.
- Process Control: Modern activated sludge plants use sophisticated process control systems to monitor and adjust operating parameters such as aeration rate, sludge recycle rate, and nutrient addition. This optimization enhances treatment efficiency and reduces energy consumption.
- Variations: There are several variations of the activated sludge process, including conventional activated sludge, extended aeration, sequencing batch reactors (SBRs), and membrane bioreactors (MBRs). Each variation offers unique advantages in terms of treatment performance, energy efficiency, and footprint requirements.
SAF systems are compact and robust sewage treatment plants that require minimal maintenance due to their simple design and few moving parts.
- How it Works: These systems involve submerged filters packed with media such as plastic or gravel. Air is pumped into the filter to provide oxygen for the microorganisms that grow on the media. Wastewater flows through the filter, and the microorganisms consume organic matter.
- Applications: SAF systems are suitable for small to medium-sized communities, as well as industrial applications. They are particularly well-suited for locations where space is limited or where maintenance is a concern.
MBBR technology employs numerous polyethylene biofilm carriers that move freely within an aerated wastewater treatment basin.
- Biofilm Carriers: These carriers provide a large surface area for the growth of microorganisms, allowing for high-rate biodegradation. The moving bed design ensures that the microorganisms are evenly distributed throughout the basin and that they have access to both wastewater and oxygen.
- Advantages: MBBR systems offer several advantages over conventional activated sludge systems, including higher treatment capacity, smaller footprint, and greater resistance to shock loads.
MBRs combine a biological treatment process with membrane filtration.
- Membrane Filtration: The membranes act as a physical barrier, removing suspended solids, bacteria, and viruses from the wastewater. This results in a very high-quality effluent that can be reused for irrigation, industrial cooling, or even potable water supply.
- Configurations: MBRs can be configured in various ways, including submerged membrane systems and sidestream membrane systems. Submerged membrane systems have the membranes immersed directly in the bioreactor, while sidestream membrane systems have the membranes located in a separate tank.
MABR systems deliver oxygen directly to the biofilm through a gas-permeable membrane, eliminating the need for conventional aeration.
- Energy Savings: This reduces energy consumption significantly compared to activated sludge systems.
- Applications: MABR technology is well-suited for upgrading existing wastewater treatment plants, as it can be retrofitted into existing tanks.
Advanced wastewater treatment technologies are continually evolving to meet the challenges of increasing water scarcity, stricter discharge regulations, and the need for more sustainable treatment solutions.
- Nutrient Recovery: Technologies are being developed to recover valuable nutrients such as nitrogen and phosphorus from wastewater. These nutrients can be used as fertilizers, reducing the need for synthetic fertilizers and closing the nutrient loop.
- Energy Recovery: Wastewater contains significant amounts of energy in the form of organic matter. Anaerobic digestion can be used to convert this organic matter into biogas, which can be used to generate electricity or heat.
- Water Reuse: Water reuse is becoming increasingly common as a way to conserve water resources. Treated wastewater can be used for a variety of non-potable purposes, such as irrigation, industrial cooling, and toilet flushing. In some cases, treated wastewater can even be purified to potable standards and used as a drinking water source.
Sewage treatment plants stand as guardians of environmental health, playing an indispensable role in safeguarding water resources and public health. Through a series of carefully orchestrated processes—preliminary, primary, secondary, and tertiary treatments—wastewater undergoes a transformation, shedding contaminants and emerging as a resource that can be safely returned to the environment or even reused. The technologies underpinning these plants, ranging from activated sludge systems to advanced membrane bioreactors, are continually evolving to meet the challenges of increasing water scarcity, stricter discharge regulations, and the imperative for sustainable solutions. As we look to the future, innovations such as nutrient recovery, energy generation from waste, and enhanced water reuse practices promise to further enhance the efficiency and sustainability of wastewater treatment. By embracing these advancements, we can ensure that wastewater treatment plants continue to protect our planet and provide clean, safe water for generations to come.
Sewage treatment plants remove contaminants from wastewater to produce environmentally safe treated water, protecting public health and the environment.
The main stages are preliminary treatment (removing large debris), primary treatment (settling solids), secondary treatment (biological breakdown of organic matter), and tertiary treatment (advanced pollutant removal).
The activated sludge method is a biological process in which wastewater is mixed with a concentrated suspension of microorganisms in aeration tanks. These microorganisms consume organic matter, breaking down waste and purifying the water.
MBBR (Moving Bed Biofilm Reactor) technology utilizes polyethylene biofilm carriers in an aerated basin to enhance biodegradation. These carriers provide a large surface area for microorganisms to grow, improving treatment efficiency.
A SAF (Submerged Aerated Filter) system is a simple and low-maintenance sewage treatment plant. It involves submerged filters packed with media, through which wastewater flows while air is pumped in to support the growth of microorganisms that consume organic matter.
