Electrophoretic coatings, commonly known as e-coatings, are a crucial industrial process used to apply paint or coatings to metal surfaces using an electric current. This method is renowned for its efficiency, uniformity, and exceptional corrosion resistance, making it a preferred choice in various industries such as automotive and aerospace. In this article, we will delve into the science behind electrophoretic coatings, focusing on the key chemicals involved and the process's intricacies.

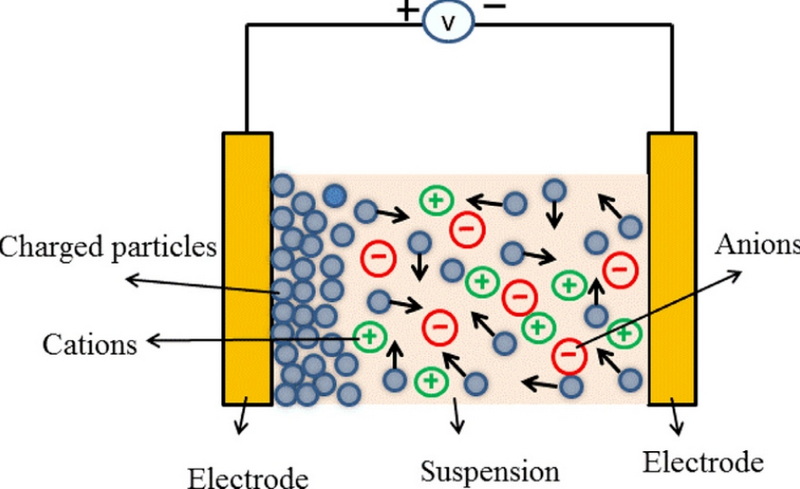

Electrophoretic coating involves submerging metal parts into a water-based solution containing paint particles. An electrical current is applied, causing the paint particles to migrate towards the metal object and adhere to its surface due to electrophoresis. This process ensures that the entire object, including complex shapes and hidden areas, is uniformly coated.
One of the significant advantages of electrophoretic coating is its ability to provide a uniform film thickness across the entire surface of the workpiece, regardless of its shape or size. This consistency is crucial in industries that demand tight tolerances, as the coating's depth can be accurately accounted for. Additionally, a uniform thickness enhances the aesthetic appeal of the end product, providing a smooth and polished finish.
Electrophoretic coatings also offer a long-lasting finish, which significantly enhances the durability and longevity of the coated products. This is due to the coating's distinctive chemical composition that enables it to withstand wear and tear, corrosion, and environmental impacts. This makes the coated items more resilient and extends their lifespan.
The e-coating process involves several key steps that ensure a thorough and efficient coating application. Understanding these steps provides insight into the complexity and effectiveness of this coating method.
Before the actual e-coating process begins, proper pre-treatment is essential to prepare the substrate for coating. This step typically involves cleaning the surface to remove contaminants such as dirt, grease, or rust. Common pre-treatment methods include degreasing, alkaline cleaning, acid etching, phosphating, or sandblasting.
Certain substrate areas may need to be protected from being coated due to functional requirements or design specifications. Masking involves applying specific materials like tapes, plugs, or specialized coatings in these areas before entering the e-coating tank.

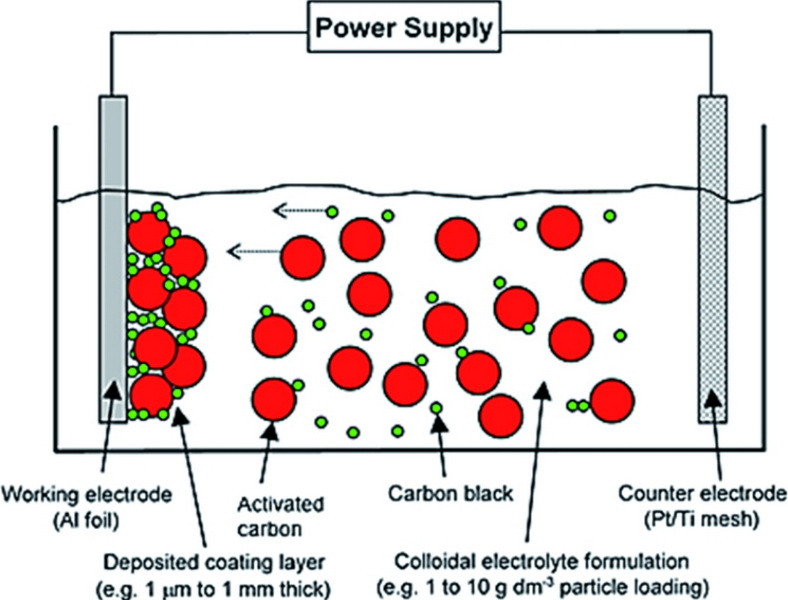

Once prepared and masked, if necessary, the substrate is immersed in an electrolyte bath containing electrically charged particles of paint known as colloidal particles or a paint emulsion called slurry. These particles consist of resin binders and pigments dispersed in water-based solutions.

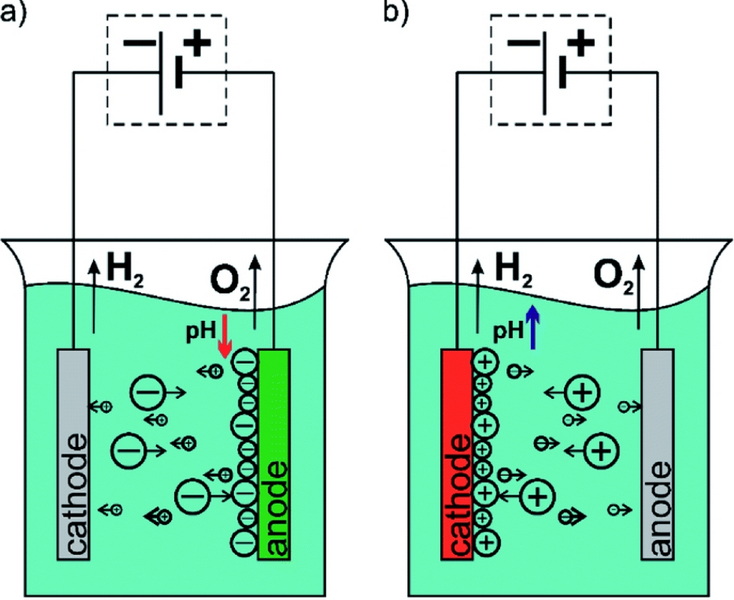

The heart of e-coating lies in electrodeposition, where an electrical current is applied to drive the charged paint particles toward the oppositely charged substrates. The positively charged anodes are present throughout the tank, while substrates act as negatively charged cathodes. As current flows through the electrolyte bath between these electrodes under carefully controlled conditions (voltage and time), electrochemical reactions occur at both ends, resulting in paint deposition on the substrate surface through an attraction force known as electrophoresis.
Once the desired coating thickness is achieved, the coated parts are rinsed with clean water to remove any excess paint particles or electrolyte residue. This step ensures a clean, residue-free surface while preventing any potential contamination or adverse effects during subsequent curing processes. Following rinsing, the coated substrates undergo curing to complete the coating's mechanical properties and overall performance.
The key chemicals involved in electrophoretic coatings include resin binders, pigments, and additives. These components are crucial for achieving the desired properties of the coating, such as durability, color, and corrosion resistance.
Resin binders are the primary component of the coating, providing adhesion and cohesion to the paint film. Common resin binders include acrylic, epoxy, and polyurethane resins. These resins are dispersed in water-based solutions to form a stable emulsion that can be used in the e-coating process.
Pigments are added to the coating to provide color and enhance its aesthetic appeal. They can also contribute to the coating's durability and UV resistance. Common pigments include titanium dioxide for white, carbon black for black, and iron oxide for red or yellow shades.
Additives are used to improve the performance of the coating. These can include surfactants to enhance wetting properties, thickeners to control viscosity, and UV stabilizers to protect the coating from ultraviolet light degradation.
The chemical raw materials used in electrophoretic coatings are primarily water-based, which offers environmental advantages by reducing solvent emissions. The key raw materials include:
- Water: Acts as the solvent for the paint emulsion.
- Resin Binders: Provide adhesion and cohesion to the paint film.
- Pigments: Add color and enhance durability.
- Additives: Improve coating performance and stability.
Electrophoretic coatings have a wide range of applications due to their versatility and effectiveness. They are used in industries such as automotive, aerospace, and consumer electronics to provide corrosion resistance and enhance product durability.
In the automotive sector, e-coatings are used to protect vehicle bodies and parts from corrosion, ensuring a longer lifespan and maintaining aesthetic appeal.
In aerospace, e-coatings are applied to aircraft components to provide corrosion protection and meet stringent durability requirements.
Electrophoretic coatings are a vital industrial process that leverages electrical current to deposit paint onto metal surfaces, offering uniformity, corrosion resistance, and durability. The key chemicals involved, including resin binders, pigments, and additives, play a crucial role in achieving the desired coating properties. Understanding the e-coating process and its applications can help industries optimize their use of this technology to enhance product performance and longevity.
Electrophoretic coating is a process that uses an electric current to deposit paint onto metal surfaces. It is known for its efficiency and uniformity, providing excellent corrosion resistance.
The key chemicals involved include resin binders (e.g., acrylic, epoxy), pigments (e.g., titanium dioxide, carbon black), and additives (e.g., surfactants, UV stabilizers).
Advantages include uniform film thickness, long-lasting finish, and exceptional corrosion resistance. It is also environmentally friendly due to its water-based nature.
The process involves pre-treatment, masking, immersion in an electrolyte bath, electrodeposition, and post-rinse followed by curing. Each step ensures a high-quality and consistent coating.
Electrophoretic coatings are widely used in industries such as automotive, aerospace, and consumer electronics to enhance product durability and corrosion resistance.
