Electrophoretic coating (EPD), also known as electrocoating, e-coating, or e-painting, is an industrial process that uses an electric current to deposit a coating onto a metal object. This method is valued for its efficiency, uniform coating, and exceptional corrosion resistance. The process involves several sub-processes, including preparation, coating, rinsing, and curing. Electrophoretic coating is applied in numerous industries, such as automotive, construction, and aerospace, to enhance the performance and appearance of aluminum profiles.
The electrophoretic deposition process includes several key steps:
1. Preparation: This involves cleaning the object to be coated and may include applying a conversion coating, typically an inorganic phosphate coating. Pre-treatment is performed to remove contaminants like oils, grease, rust, or old coatings to ensure proper adhesion. Alkaline etching additives are often used to remove oxide layers and impurities from the aluminum surface.

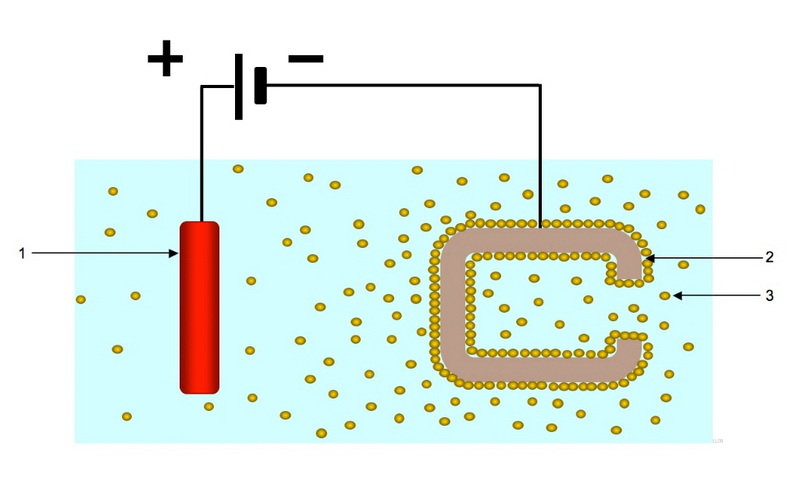

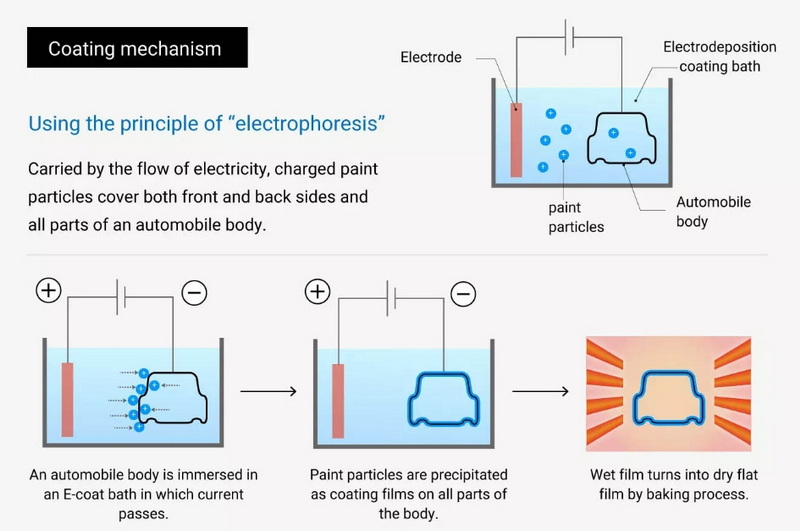

2. Coating: The object is submerged in a water-based solution containing paint particles. A direct current electricity is applied through the EPD bath using electrodes, with voltages typically ranging from 25 to 400 volts DC. The object to be coated acts as one electrode, and counter-electrodes complete the circuit. The charged paint particles migrate toward the oppositely charged substrate and are deposited on the surface in a uniform layer.
3. Rinsing: After deposition, the object is rinsed to remove any undeposited bath material. An ultrafilter may be used to dewater a portion of the bath to be used as rinse material, which can then be returned to the coating vessel.
4. Curing: The object undergoes a baking or curing process, which crosslinks the polymer and allows the coating to become smooth and continuous.
Several factors can affect the quality and efficiency of electrophoretic painting:
Gas Formation: During the aqueous deposition process, hydrogen gas forms at the cathode, and oxygen gas forms at the anode. The cathodic process results in more gas being trapped within the film than the anodic process, affecting the current at a given applied voltage.
Resistance: The deposited coating has a higher resistance than the object being coated. As the film precipitates, the resistance increases, slowing or stopping the deposition process. The applied voltage is the primary control for the amount of film applied.
Treatment additives are crucial in enhancing the performance and appearance of aluminum profiles. They are used in various stages of aluminum processing, including surface cleaning and etching, anodizing and coating, welding and bonding, and painting and finishing.
1. Alkaline Etching Additives: These additives remove oxide layers and impurities from the aluminum surface, preparing it for subsequent processes such as anodizing or coating. They typically contain sodium hydroxide (NaOH) or potassium hydroxide (KOH).
2. Acid Etching Additives: These are used for etching aluminum surfaces to create a textured finish or to prepare the surface for painting. Acid etching additives often involve nitric acid or sulfuric acid solutions.
3. Degreasing Additives: These additives remove oils and greases from aluminum surfaces, ensuring cleanliness before further processing. Degreasing additives can be alkaline or acidic, depending on the application.
4. Anodizing Additives: These enhance the anodizing process by improving the uniformity and density of the oxide layer formed on the aluminum surface. Anodizing additives can include chemicals like sulfuric acid and oxalic acid.
5. Chromate Conversion Coating Additives: These are used to create a protective layer on aluminum surfaces, enhancing corrosion resistance. However, due to environmental concerns, they are being replaced by more eco-friendly alternatives.
1. Surface Preparation Requirements: Different processes require different levels of surface cleanliness and texture. Anodizing requires a smooth, oxide-free surface, while painting may require a textured surface for better adhesion.
2. Environmental and Safety Considerations: The choice of additive should consider environmental impact and operator safety. Eco-friendly additives with minimal toxicity are preferred.
3. Cost and Efficiency: The cost-effectiveness of the additive and its impact on processing time and energy consumption are crucial. Additives that reduce processing time or energy can significantly lower production costs.
4. Compatibility with Subsequent Processes: The selected additive should not interfere with subsequent treatments like coating or welding.
1. Improved Surface Quality: Treatment additives ensure a clean and reactive surface, which is crucial for subsequent processes like anodizing or coating.
2. Enhanced Corrosion Resistance: By creating a uniform oxide layer during anodizing, treatment additives can improve corrosion resistance.
3. Increased Efficiency: Additives can reduce processing time and energy consumption by improving surface reactivity.
4. Cost Savings: Efficient processing and reduced material waste contribute to cost savings.
5. Environmental Benefits: Eco-friendly additives reduce environmental impact by minimizing waste and using less toxic chemicals.
Recent advancements in treatment additives include developing more eco-friendly alternatives to traditional chemicals. For instance, titanium dioxide-based coatings are being explored for their potential to replace chromate conversion coatings. These alternatives not only reduce environmental impact but also provide comparable or improved performance in terms of corrosion resistance and durability.
1. Automotive Industry: Treatment additives are used to enhance corrosion resistance and improve paint adhesion on aluminum components. This is particularly important for parts exposed to harsh environmental conditions, such as engine components and body panels.
2. Construction Industry: Additives help create durable, weather-resistant aluminum profiles for building facades and structural elements. The use of anodizing additives ensures that these profiles maintain their appearance and structural integrity over time.
3. Aerospace Industry: High-performance treatment additives are critical for ensuring the integrity and durability of aluminum components under extreme conditions. These additives must meet stringent standards for corrosion resistance and mechanical strength.

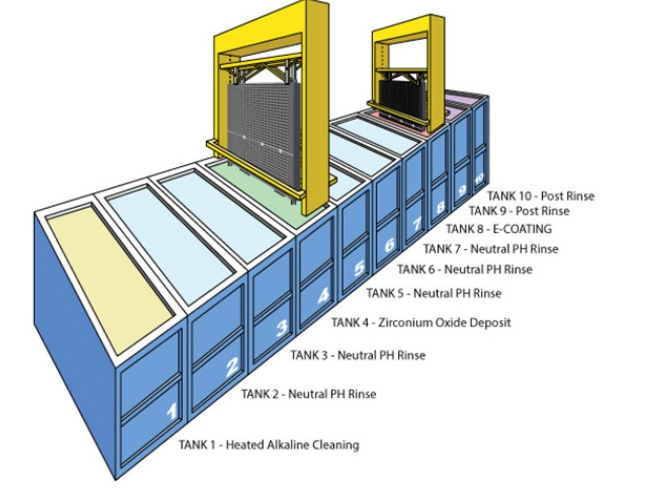

An electrophoresis surface treatment process for aluminum products involves several steps to ensure a high-quality coating:
1. Degreasing: The surface of the aluminum product is degreased through pre-degreasing, degreasing, and washing.
2. Electrophoresis Treatment: Electrophoresis is carried out in a solution tank with a temperature of 25-28°C and a solid content of 15-17%, under a pH value of 6.0-6.3 and a voltage range of 90-180V. The electrophoresis time is 130-160 seconds.
3. Rinsing and Drying: The gel is washed with clean water at normal temperature, followed by drying.
4. Packaging: The materials are collected and packaged.
The resulting electrophoresis layer has uniform thickness, covers hidden positions, has strong adhesion, corrosion resistance, and a flat and smooth finish.
Recent advancements in electrophoretic coating include the use of advanced materials and techniques to enhance the coating's properties. For example, incorporating nanoparticles into the coating can improve its mechanical strength and durability. Additionally, using advanced electrode designs can optimize the deposition process, leading to more uniform coatings.
Nanotechnology has opened new avenues for improving the performance of electrophoretic coatings. By incorporating nanoparticles, coatings can exhibit enhanced properties such as increased hardness, improved thermal stability, and better corrosion resistance. These advancements are particularly beneficial in industries where components are exposed to harsh conditions.
Innovations in electrode design have significantly improved the efficiency and uniformity of electrophoretic coating. Optimized electrode configurations can reduce electrical resistance, allowing for more consistent deposition across complex shapes. This is crucial for achieving uniform coatings on intricate parts.
Despite the advantages of electrophoretic coating, there are challenges to be addressed. One of the main challenges is the environmental impact of some treatment additives. Future research should focus on developing more eco-friendly alternatives without compromising performance. Additionally, integrating advanced technologies like nanotechnology and AI can further enhance the efficiency and quality of the coating process.
The environmental impact of electrophoretic coating processes is a significant concern. Efforts are being made to reduce waste and use less toxic chemicals. The development of eco-friendly additives and more efficient processes will be crucial for sustainable manufacturing practices.
The integration of advanced technologies such as nanotechnology and artificial intelligence (AI) can significantly enhance the electrophoretic coating process. AI can optimize process parameters in real-time, ensuring consistent quality and efficiency. Nanotechnology can improve the mechanical and chemical properties of the coatings.
Electrophoretic coating is a versatile and efficient method for applying coatings to metal surfaces, offering uniformity and excellent corrosion resistance. Treatment additives play a crucial role in enhancing the quality and performance of aluminum profiles by ensuring clean, reactive surfaces and improving corrosion resistance. Recent advancements focus on developing eco-friendly alternatives to traditional chemicals, aligning with sustainable manufacturing practices.
Electrophoretic coating, also known as e-coating or electrocoating, is a process that uses an electrical current to deposit a paint or coating onto a metal object submerged in a water-based solution. The process is valued for its efficiency, uniform coating, and exceptional corrosion resistance.
Treatment additives are substances used to enhance the performance and appearance of aluminum profiles during processing. They include alkaline etching additives, acid etching additives, degreasing additives, anodizing additives, and chromate conversion coating additives. These additives improve surface quality, corrosion resistance, and processing efficiency.
Alkaline etching additives remove oxide layers and impurities from the aluminum surface, preparing it for subsequent processes such as anodizing or coating. These additives typically contain sodium hydroxide (NaOH) or potassium hydroxide (KOH).
Surface preparation is crucial because it ensures proper adhesion of the coating. Contaminants such as oils, grease, rust, and old coatings must be removed to achieve a uniform and durable finish.
Environmental considerations are important when selecting treatment additives. Eco-friendly additives with minimal toxicity are preferred to reduce environmental impact and ensure operator safety. Alternatives to chromate conversion coatings, such as titanium dioxide-based coatings, are being explored.
