● Introduction to Sewage Treatment
>> 1. Primary Treatment: Physical Separation
>> 2. Secondary Treatment: Biological Degradation
>> 3. Tertiary Treatment: Advanced Purification
● The Role of Dissolved Oxygen (DO) in Secondary Treatment
>> Challenges in DO Management
>> Technologies for DO Optimization
● Case Study: DO Management in a Municipal Plant
● Environmental and Economic Impacts
● FAQ
>> 1. What happens if DO levels drop too low during secondary treatment?
>> 2. Can DO levels be too high?
>> 3. How do plants handle DO fluctuations during storms?
>> 4. What role do algae play in DO levels?
>> 5. Are there alternatives to mechanical aeration?
Sewage treatment plants are vital infrastructure for protecting public health and ecosystems by removing contaminants from wastewater. A critical factor in the efficiency of these systems is dissolved oxygen (DO) levels, particularly during biological treatment phases. This article explores the science behind DO management, its impact on treatment processes, and the technologies used to optimize it. With detailed explanations, visual aids, and actionable insights, we'll uncover how maintaining proper DO levels ensures effective wastewater treatment.

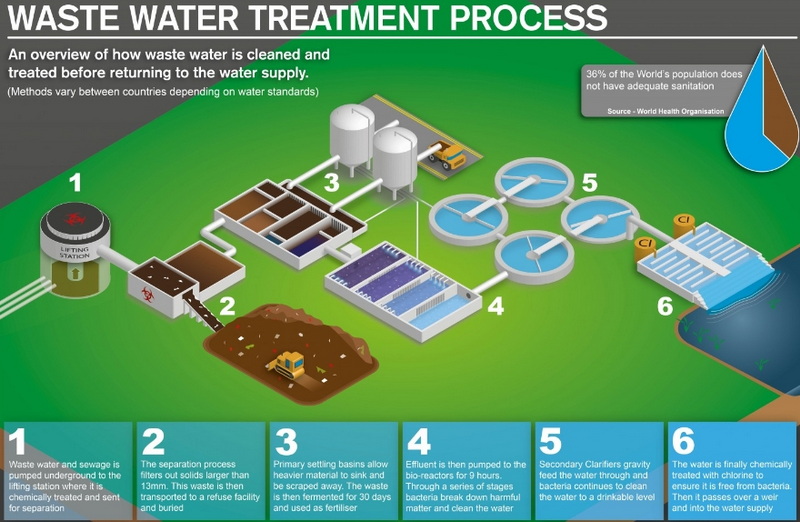

Wastewater treatment involves multiple stages to progressively remove contaminants, from physical debris to microscopic pathogens. The process ensures that water discharged into rivers, lakes, or oceans meets environmental safety standards. Below, we break down the stages and highlight the role of DO at each step.
Primary treatment removes large solids and settleable organic matter through physical processes. Wastewater flows through screens to capture debris like plastics and rags, followed by grit chambers to separate sand and gravel. Sedimentation tanks then allow heavier solids to settle as sludge, while oils and grease rise to the surface for skimming.
Secondary treatment targets dissolved organic matter using microbial communities. Aerobic bacteria dominate this stage, consuming organic pollutants and converting them into CO₂, water, and biomass. This process requires dissolved oxygen (DO) to sustain microbial activity.
- Activated Sludge Process: Wastewater is mixed with a microbial-rich slurry in aeration tanks. Air is pumped in to maintain DO levels between 2–4 mg/L, ensuring optimal bacterial growth.
- Biofilm Systems: Microorganisms grow on media surfaces (e.g., rotating biological contactors), reducing energy costs compared to activated sludge.
Tertiary treatment removes residual nutrients (nitrogen, phosphorus), pathogens, and micropollutants. Methods include:
- Chemical Precipitation: Adding alum or ferric chloride to remove phosphorus.
- UV Disinfection: Neutralizing pathogens without chemical byproducts.
- Membrane Filtration: Using ultrafiltration or reverse osmosis for high-purity effluent.
DO is the lifeblood of aerobic biological treatment. Insufficient oxygen leads to anaerobic conditions, causing foul odors, incomplete pollutant breakdown, and sludge bulking. Below, we explore DO's importance, challenges in maintaining it, and solutions.
- Microbial Efficiency: Aerobic bacteria metabolize organic waste 20x faster than anaerobic species.
- Sludge Quality: Optimal DO (2–4 mg/L) produces dense, settleable sludge, reducing post-treatment costs.
- Odor Control: Aerobic conditions prevent hydrogen sulfide (H₂S) formation, a major source of foul smells.
1. Variable Influent Loads: Sudden influxes of organic waste (e.g., industrial discharges) spike oxygen demand.
2. Temperature Fluctuations: Cold water holds more oxygen, but microbial activity slows; warm water has lower DO solubility but faster metabolism.
3. Aeration System Failures: Mechanical issues or power outages disrupt oxygen supply, risking process failure.
1. Aeration Systems
- Coarse Bubble Aeration: Low-cost but less efficient, suitable for small plants.
- Fine Bubble Diffusers: Deliver 5–15% higher oxygen transfer efficiency, ideal for large-scale operations.
2. Automated DO Control
- Sensors feed data to PLCs (programmable logic controllers), adjusting blower speeds in real time.
3. Alternative Oxygen Sources
- Oxygen Generators: On-site production of pure O₂ for high-strength wastewater.
- Venturi Injectors: Use fluid dynamics to dissolve oxygen without mechanical aerators.
The Greenfield Wastewater Plant (Illinois, USA) faced chronic DO shortages due to aging infrastructure. Upgrading to fine bubble diffusers and AI-driven controls reduced energy costs by 22% and improved effluent quality by 35%. Key takeaways:
- Predictive algorithms anticipate oxygen demand based on historical data.
- Redundant sensors prevent system failures during peak loads.
- Lower Carbon Footprint: Efficient aeration cuts energy use, a major contributor to plant emissions.
- Water Reuse: High-quality effluent supports agricultural or industrial reuse, conserving freshwater.
- Capital Costs: Fine bubble systems cost 20–30% more than coarse bubble setups but offer long-term savings.
- Operational Savings: Automated DO control can reduce energy bills by up to $50,000 annually for mid-sized plants.
Dissolved oxygen is a linchpin of effective sewage treatment, directly influencing microbial activity, sludge management, and effluent quality. Advances in aeration technology and automation have made DO control more precise and sustainable, enabling plants to meet stringent environmental regulations while reducing operational costs. As urbanization intensifies, optimizing DO levels will remain critical for safeguarding water resources.
Low DO triggers anaerobic conditions, leading to incomplete organic breakdown, foul odors, and sludge bulking. This compromises effluent quality and may violate discharge permits.
Excessive DO (>6 mg/L) wastes energy and may inhibit certain microbial communities. It can also cause foaming in aeration tanks.
Plants use equalization basins to buffer inflow surges. Automated systems adjust aeration rates dynamically to match real-time demand.
In oxidation ponds, algae produce oxygen via photosynthesis during daylight but consume it at night. This diurnal cycle requires careful monitoring.
Yes! Constructed wetlands use plants and natural processes to aerate water, though they require more land and are less efficient for high-volume treatment.
