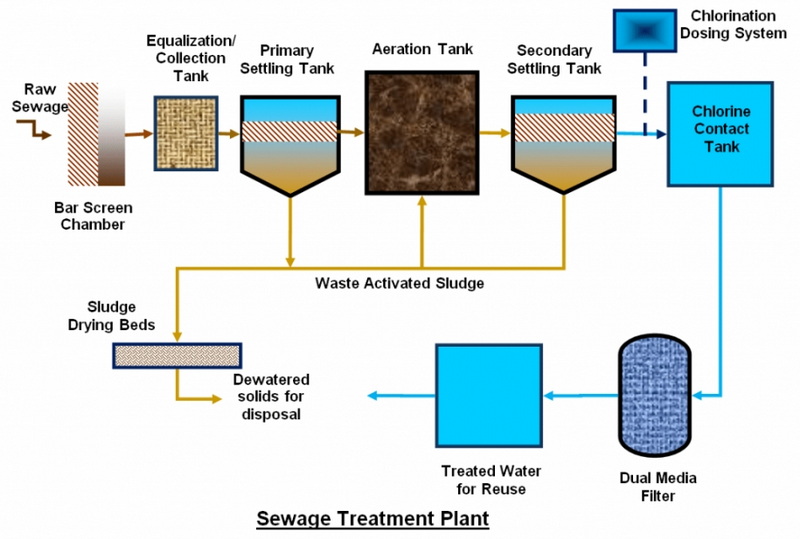

Sewage treatment is a critical process for protecting public health and the environment. Untreated sewage contains harmful pollutants, including pathogens, organic matter, and nutrients, which can contaminate water sources, spread diseases, and damage ecosystems. Effective sewage treatment removes these pollutants, producing effluent that can be safely discharged or reused. The selection of appropriate sewage treatment materials is paramount to achieving optimal treatment performance, longevity, and cost-effectiveness. This buyer's guide provides a comprehensive overview of the various materials used in sewage treatment, covering their properties, applications, advantages, disadvantages, and key considerations for selection.

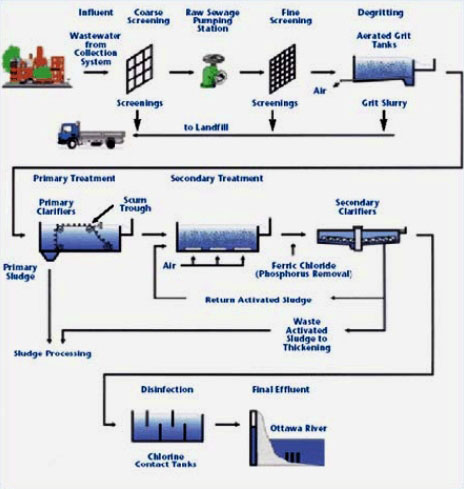

Primary treatment is the first stage of sewage treatment, focusing on the removal of large solids and settleable materials from the wastewater stream. This process typically involves screening, grit removal, and sedimentation.
Screens are used to remove large debris, such as rags, plastics, and wood, which can clog or damage downstream equipment. Screens are classified based on their opening size and design.
Coarse Screens: These screens have large openings (typically greater than 6 mm) and are used to remove bulky objects. Materials include:
- Stainless Steel: Durable, corrosion-resistant, and easy to clean. Ideal for harsh sewage environments.
- Galvanized Steel: Provides corrosion protection at a lower cost than stainless steel but may be less durable in the long run.
- Plastic: Lightweight and cost-effective but may be less resistant to damage and wear.
Fine Screens: These screens have smaller openings (typically 1.5 to 6 mm) and are used to remove finer solids. Materials include:
- Woven Wire Mesh (Stainless Steel): Provides a precise and consistent opening size for efficient solids removal.
- Perforated Plates (Stainless Steel): Offer a robust and durable screening surface.
Considerations for Screen Selection:
- Opening Size: Select an opening size that effectively removes target debris without excessive clogging.
- Material Strength and Durability: Choose materials that can withstand the hydraulic forces and corrosive environment of sewage.
- Ease of Cleaning: Opt for designs that facilitate easy removal of accumulated solids.
- Automation: Consider automated screening systems with self-cleaning mechanisms for reduced labor costs.
Grit removal systems remove sand, gravel, and other heavy inorganic materials that can damage pumps and accumulate in treatment tanks.
- Concrete: Used for constructing grit channels and settling basins. Must be designed to resist erosion from abrasive grit.
- Steel: Used for constructing grit classifiers and conveying equipment. Requires corrosion protection.
- Specialized Liners: Epoxy coatings or other specialized liners can be applied to concrete surfaces to enhance abrasion resistance and prevent chemical attack.
Considerations for Grit Removal Material Selection:
- Abrasion Resistance: Choose materials that can withstand the abrasive action of grit particles.
- Corrosion Resistance: Select materials that are resistant to the corrosive chemicals present in sewage.
- Hydraulic Design: Ensure that the materials are compatible with the hydraulic design of the grit removal system.
Sedimentation tanks (or clarifiers) allow settleable solids to settle to the bottom of the tank, forming sludge.
- Concrete: The most common material for constructing sedimentation tanks due to its strength, durability, and ability to be molded into various shapes.
- Steel: Used for prefabricated sedimentation tanks or for structural components. Requires corrosion protection.
- Coatings and Linings: Epoxy coatings, polyurethane coatings, or other specialized linings can be applied to concrete or steel surfaces to protect against corrosion and chemical attack.
Considerations for Sedimentation Tank Material Selection:
- Structural Integrity: Ensure that the materials can withstand the hydrostatic pressure of the tank and the weight of the sludge.
- Corrosion Resistance: Select materials that are resistant to the corrosive chemicals present in sewage.
- Leakage Prevention: Ensure that the tank is watertight to prevent groundwater contamination.
- Sludge Removal System Compatibility: Choose materials that are compatible with the sludge removal system.
Secondary treatment utilizes biological processes to remove dissolved organic matter from the wastewater. This stage typically involves activated sludge, trickling filters, or rotating biological contactors.
Activated sludge systems use microorganisms to consume organic pollutants. The materials used in activated sludge systems include:
- Concrete: Used for constructing aeration basins and secondary clarifiers.
- Steel: Used for constructing tanks, piping, and aeration equipment.
- Diffusers: Used to introduce air into the aeration basin.
- Ceramic Diffusers: Produce fine bubbles for efficient oxygen transfer but can be prone to clogging.
- Membrane Diffusers: More resistant to clogging and offer a more uniform air distribution. Materials include EPDM (ethylene propylene diene monomer) and silicone.
- Pumps and Piping: Used to circulate the activated sludge and wastewater. Materials include:
- Cast Iron: Durable and cost-effective for pump casings and large-diameter pipes.
- Stainless Steel: Provides excellent corrosion resistance for critical components.
- PVC (Polyvinyl Chloride) and HDPE (High-Density Polyethylene): Lightweight and corrosion-resistant for smaller-diameter pipes.
Considerations for Activated Sludge Material Selection:
- Oxygen Transfer Efficiency: Select diffusers that provide high oxygen transfer efficiency to minimize energy consumption.
- Clogging Resistance: Choose diffusers that are resistant to clogging from solids and biofilm growth.
- Corrosion Resistance: Select materials that are resistant to the corrosive chemicals present in the aeration basin.
- Mixing and Aeration Requirements: Ensure that the materials are compatible with the mixing and aeration requirements of the activated sludge process.
Trickling filters consist of a bed of media over which wastewater is distributed. Microorganisms grow on the media and consume organic pollutants as the wastewater trickles through.
- Filter Media: Provides a surface area for microbial growth.
- Rock: A traditional filter media that is inexpensive but can be heavy and prone to clogging.
- Plastic: Lightweight, durable, and provides a high surface area for microbial growth. Common types include:
- PVC (Polyvinyl Chloride): Cost-effective and chemically resistant.
- Polypropylene (PP): Stronger and more resistant to high temperatures than PVC.
- Underdrain System: Collects the treated wastewater and provides ventilation. Typically made of concrete or plastic.
- Distribution System: Distributes the wastewater evenly over the filter media. Typically made of rotating arms with spray nozzles.
Considerations for Trickling Filter Material Selection:
- Surface Area: Select a media with a high surface area to maximize microbial growth and treatment efficiency.
- Void Space: Ensure adequate void space to prevent clogging and promote air circulation.
- Durability: Choose materials that are resistant to degradation from UV exposure, chemicals, and physical wear.
- Weight: Consider the weight of the media when designing the filter structure.
RBCs consist of a series of rotating discs partially submerged in wastewater. Microorganisms grow on the discs and consume organic pollutants as they rotate in and out of the wastewater.
- Discs: Provide a surface area for microbial growth. Typically made of:
- HDPE (High-Density Polyethylene): Lightweight, durable, and resistant to chemical attack.
- Polypropylene (PP): Offers higher strength and temperature resistance than HDPE.
- Shaft and Drive System: Rotates the discs. Typically made of steel with corrosion protection.
- Tank: Contains the wastewater. Typically made of concrete or steel.
Considerations for RBC Material Selection:
- Surface Area: Select discs with a high surface area to maximize microbial growth and treatment efficiency.
- Durability: Choose materials that are resistant to degradation from UV exposure, chemicals, and physical wear.
- Corrosion Resistance: Select materials that are resistant to the corrosive chemicals present in the wastewater.
- Rotational Speed: Ensure that the materials are compatible with the rotational speed of the RBC.
Tertiary treatment provides further polishing of the wastewater to remove remaining pollutants, such as nutrients and pathogens.
Filtration removes suspended solids that may remain after secondary treatment.
- Sand: A common filtration media that is effective at removing suspended solids.
- Gravel: Used as a support layer for sand filters.
- Anthracite: A type of coal that is used as a filter media to remove finer particles than sand.
- Membranes: Used in membrane filtration systems, such as microfiltration (MF), ultrafiltration (UF), nanofiltration (NF), and reverse osmosis (RO). Materials include:
- Polymeric Membranes: Made of materials such as polysulfone, polyethersulfone, and cellulose acetate.
- Ceramic Membranes: Offer higher chemical resistance and longer lifespans than polymeric membranes.
Considerations for Filtration Material Selection:
- Pore Size: Select a pore size that is appropriate for the size of the particles to be removed.
- Flux Rate: Consider the flux rate of the filter media, which is the volume of water that can be filtered per unit area per unit time.
- Backwashing Requirements: Determine the frequency and intensity of backwashing required to maintain filter performance.
- Chemical Compatibility: Ensure that the filter media is compatible with the chemicals present in the wastewater.
Disinfection kills or inactivates pathogens in the wastewater.
- Chlorine: A common disinfectant that is effective at killing bacteria and viruses.
- Sodium Hypochlorite: A liquid form of chlorine that is easy to handle and store.
- Calcium Hypochlorite: A solid form of chlorine that is more stable than sodium hypochlorite.
- Ultraviolet (UV) Light: A physical disinfectant that damages the DNA of pathogens, preventing them from reproducing.
- UV Lamps: Made of mercury vapor and emit UV light at a specific wavelength.
- Quartz Sleeves: Protect the UV lamps from the wastewater and allow UV light to pass through.
- Ozone: A powerful oxidant that can kill pathogens and remove odors.
- Ozone Generators: Produce ozone from oxygen using electrical discharge.
- Diffusers: Used to introduce ozone into the wastewater.
Considerations for Disinfection Material Selection:
- Disinfection Effectiveness: Select a disinfectant that is effective at killing or inactivating the target pathogens.
- Residual Disinfectant: Consider the residual disinfectant concentration that is required to maintain disinfection effectiveness throughout the distribution system.
- Formation of Disinfection Byproducts: Minimize the formation of disinfection byproducts, which can be harmful to human health.
- Cost: Evaluate the cost of the disinfectant, including the cost of equipment, chemicals, and operation.
Nutrient removal processes remove nitrogen and phosphorus from the wastewater.
Nitrogen Removal:
- Anoxic Tank Materials: Concrete or steel tanks used for denitrification.
- Carbon Source Addition: Methanol or other carbon sources used to fuel denitrification.
Phosphorus Removal:
- Chemical Precipitation: Chemicals such as alum or ferric chloride are added to precipitate phosphorus.
- Filter Media: Specialized filter media can be used to remove phosphorus through adsorption.
- Biological Phosphorus Removal (BPR): Relies on specific bacteria to accumulate phosphorus.
Considerations for Nutrient Removal Material Selection:
- Nutrient Removal Efficiency: Select materials and processes that provide high nutrient removal efficiency.
- Chemical Dosage: Optimize the chemical dosage to minimize chemical consumption and sludge production.
- Sludge Management: Manage the sludge produced by nutrient removal processes.
- Cost: Evaluate the cost of nutrient removal, including the cost of equipment, chemicals, and operation.

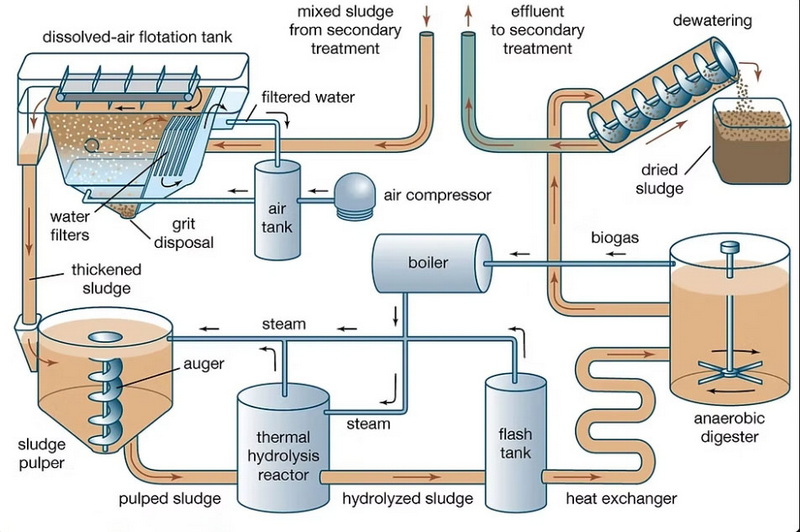

Sludge treatment reduces the volume and stabilizes the sludge produced during sewage treatment.
Thickening increases the solids concentration of the sludge.
- Gravity Thickeners: Concrete or steel tanks that allow solids to settle by gravity.
- Dissolved Air Flotation (DAF): Air bubbles are used to float solids to the surface.
- Rotary Drum Thickeners: Rotating drums with screens that separate solids from liquids.
Digestion stabilizes the sludge by reducing the amount of organic matter.
- Anaerobic Digesters: Concrete or steel tanks that are used to digest sludge in the absence of oxygen.
- Aerobic Digesters: Concrete or steel tanks that are used to digest sludge in the presence of oxygen.
- Heating Systems: Used to maintain the temperature of the digesters.
Dewatering reduces the water content of the sludge.
- Belt Filter Presses: Belts are used to squeeze water out of the sludge.
- Centrifuges: Rotate at high speed to separate solids from liquids.
- Drying Beds: Sludge is spread on sand beds to dry in the sun.
Selecting the right sewage treatment materials is crucial for ensuring the effective and reliable operation of wastewater treatment plants. This guide has provided an overview of the various materials used in primary, secondary, tertiary, and sludge treatment processes, along with key considerations for their selection. By carefully evaluating the properties, advantages, and disadvantages of different materials, engineers and plant operators can make informed decisions that optimize treatment performance, minimize costs, and protect the environment. The longevity and efficiency of a sewage treatment plant are directly linked to the quality and suitability of the sewage treatment materials used in its construction and operation. Therefore, a thorough understanding of these materials is essential for anyone involved in the design, construction, or operation of sewage treatment facilities.
Answer: The most important factors include corrosion resistance, durability, cost-effectiveness, chemical compatibility, and the specific requirements of the treatment process. Different stages of treatment require different material properties.
Answer: Regular inspection and maintenance are crucial. This includes cleaning, repairing damage promptly, and applying protective coatings as needed. Proper material selection in the initial design phase is also key.
Answer: Yes, options include recycled plastics for certain components, and the use of natural materials in constructed wetlands for tertiary treatment. Also, selecting materials with a lower carbon footprint in their production can be considered.
Answer: Using the wrong materials can lead to corrosion, premature failure, reduced treatment efficiency, increased maintenance costs, and potential environmental contamination.
Answer: Consider the size and type of particles you need to remove, the flow rate, the backwashing requirements, and the chemical compatibility of the media. Pilot testing can help determine the optimal media for your specific application.
